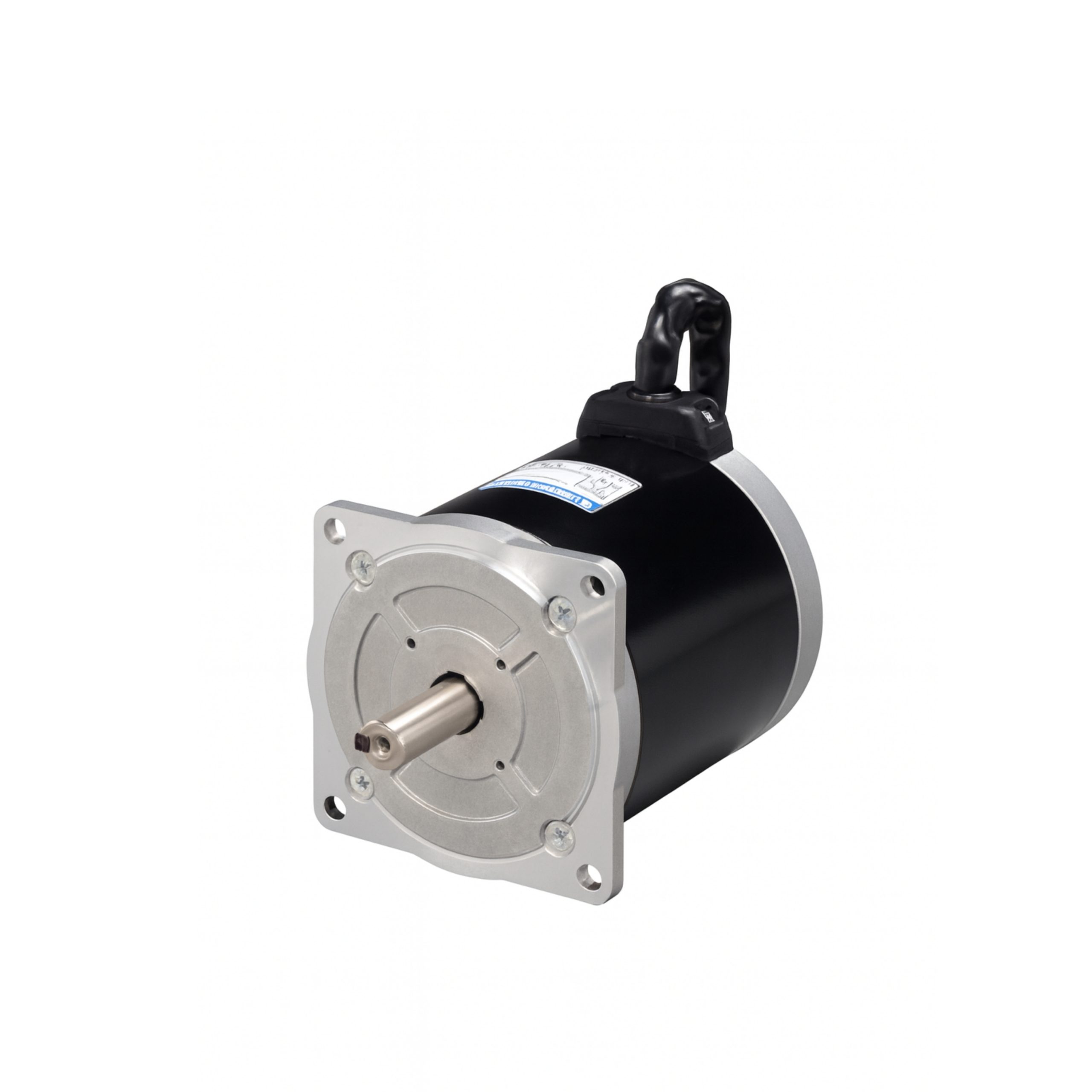

SANMOTION F2 103H8222-6310

Technical Specifications

• Model No: 103H8222-6310

• Basic Step Angle: 1.8°

• Motor Flange Size: Ø 86 mm

• Motor Length: 92.2 mm

• Shaft Type: Dual shaft

• Output Shaft: With key

• Holding Torque: 5.09 N·m

• Rotor Inertia: 2.9 ×10⁻⁴ kg·m²

• Rated Current: 6 A/phase

• Wiring: Bipolar

• Connection Type: Lead wire

• Motor Mass: 2.5 kg

Operating Conditions

• Operating Temperature Range: -10°C ～ +40°C

• Operating Humidity Range: 20% ～ 90% RH (non-condensing)

• Protection Rating: IP43
